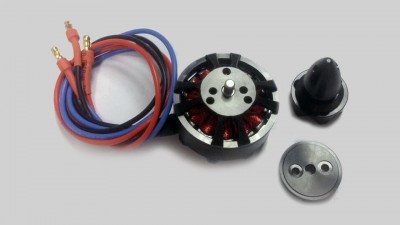

D4230 brushless motor
Motor:3515 KV:400 | ||||||
Technical Datas | Recommended Prop(inch) | |||||
KV | 400 | Standard | Max thrust | |||
Configu-ration | 12N14P | |||||
Stator Diameter | 35mm | |||||
Stator Length | 15mm | |||||
Shaft Diameter | 5mm | |||||
Motor Dimension (Dia.*Len) | 42.5*36.5mm | |||||
Weight(g) | 188 | |||||
Idle Current(10)@10V(A) | 0.3A | |||||
No. of Cells(Lipo) | 3-8S | |||||
Max Continuous current(A)180S | 30A | |||||
Max Continuous Power(W)180S | 900W | |||||
Max effciency current | (10-18A)>80% | |||||
Internal resistance | 116mΩ | |||||
Volts(V) | Prop | Amps(A) | Watts(W) | Thrust(g) | Efficiency (g/w) | Operating temperature (℃) |
22.2 | 14*4.8CF | 3.4 | 76 | 780 | 10.26 | 45 |
6.3 | 140 | 1180 | 8.43 | |||
8.5 | 192 | 1480 | 7.71 | |||
11.4 | 255 | 1880 | 7.06 | |||
13.7 | 301 | 2010 | 6.68 | |||
15*5CF | 4.3 | 87 | 970 | 11.15 | 50 | |
7.9 | 177 | 1470 | 8.31 | |||
11.6 | 254 | 1880 | 7.40 | |||
14.5 | 322 | 2200 | 6.83 | |||
17.2 | 376 | 2460 | 6.54 | |||
16*5.4CF | 5.2 | 117 | 1180 | 10.09 | 59 | |
9.4 | 210 | 1730 | 8.24 | |||
13.0 | 288 | 2100 | 7.29 | |||
16.9 | 372 | 2630 | 7.07 | |||
20.0 | 437 | 2830 | 6.48 | |||
Notes:The test condition of the temperature is motor surface temperature in 100% throttle while the motor run 10 min. |
Motor:3515 KV:650 | ||||||
Technical Datas | Recommended Prop(inch) | |||||
KV | 650 | Standard | Max thrust | |||
Configu-ration | 12N14P | |||||
Stator Diameter | 35mm | |||||
Stator Length | 15mm | |||||
Shaft Diameter | 5mm | |||||
Motor Dimension (Dia.*Len) | 42.5*36.5mm | |||||
Weight(g) | 188 | |||||
Idle Current(10)@10V(A) | 1.2A | |||||
No. of Cells(Lipo) | 3-6S | |||||
Max Continuous current(A)180S | 35A | |||||
Max Continuous Power(W)180S | 650W | |||||
Max effciency current | (10-20A)>79% | |||||
Internal resistance | 49mΩ | |||||
Volts(V) | Prop | Amps(A) | Watts(W) | Thrust(g) | Efficiency (g/w) | Operating temperature (℃) |
14.8 | 13*4.4CF | 4.3 | 64 | 650 | 10.21 | 47 |
7.9 | 117 | 960 | 8.21 | |||
11.1 | 164 | 1280 | 7.79 | |||
14.8 | 219 | 1480 | 6.76 | |||
18.1 | 268 | 1690 | 6.31 | |||
14*4.8CF | 5.6 | 83 | 840 | 10.14 | 53 | |
10.9 | 161 | 1300 | 8.06 | |||
15.1 | 223 | 1640 | 7.34 | |||
20.5 | 303 | 2000 | 6.59 | |||
24.8 | 367 | 2200 | 5.99 | |||
15*5CF | 7.2 | 107 | 870 | 8.16 | 60 | |
13.8 | 204 | 1430 | 7.00 | |||
19.0 | 281 | 1800 | 6.40 | |||
25.4 | 376 | 2100 | 5.59 | |||
30.7 | 454 | 2400 | 5.28 | |||
22.2 | 13*4.4CF | 8.7 | 193 | 1200 | 6.21 | 61℃/15S |
15.1 | 335 | 1830 | 5.46 | |||
20.8 | 462 | 2300 | 4.98 | |||
27.8 | 617 | 2750 | 4.46 | |||
33.2 | 737 | 3100 | 4.21 | |||
Notes:The test condition of the temperature is motor surface temperature in 100% throttle while the motor run 10 min. |
