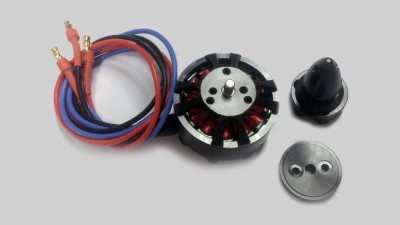

New hot sell outrunner brushless motor(D3508)
Motor:3508 KV:390 | ||||||||
Technical Datas | Recommended Prop(inch) | |||||||
KV | 380 | Standard | Max thrust | |||||
Configu-ration | 12N14P | |||||||
Stator Diameter | 35mm | |||||||
Stator Length | 8mm | |||||||
Shaft Diameter | 5mm | |||||||
Motor Dimension (Dia.*Len) | 42.5*29.5mm | |||||||
Weight(g) | 94 | |||||||
Idle Current(10)@10V(A) | 0.2A | |||||||
No. of Cells(Lipo) | 3-6S | |||||||
Max Continuous current(A)180S | 14A | |||||||
Max Continuous Power(W)180S | 320W | |||||||
Max effciency current | (2-7A)>84% | |||||||
Internal resistance | 205mΩ | |||||||
Volts(V) | Prop | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency (g/w) | Efficiency(oz/w) | Operating temperature(℃) |
18.5 | ACP12*3.8 | 1.4 | 25.9 | 410 | 14.46 | 15.83 | 0.56 | 48 |
2.5 | 46.25 | 580 | 20.46 | 12.54 | 0.44 | |||
4.8 | 88.8 | 860 | 30.34 | 9.68 | 0.34 | |||
6.3 | 112.85 | 1000 | 34.92 | 8.77 | 0.31 | |||
8.5 | 149.85 | 1220 | 41.68 | 7.94 | 0.28 | |||
ACP14*4.7 | 2.4 | 44.4 | 610 | 21.52 | 13.74 | 0.48 | 65 | |
4.0 | 74 | 810 | 28.57 | 10.95 | 0.39 | |||
6.6 | 122.1 | 1100 | 38.80 | 9.01 | 0.32 | |||
9.2 | 164.65 | 1290 | 45.50 | 7.83 | 0.28 | |||
11.7 | 207.2 | 1460 | 51.50 | 7.05 | 0.25 | |||
DJI15*5 | 2.2 | 40.7 | 600 | 21.16 | 17.74 | 0.52 | 55 | |
4.0 | 74 | 870 | 30.69 | 11.76 | 0.41 | |||
6.4 | 116.55 | 1150 | 40.56 | 9.87 | 0.35 | |||
8.2 | 151.7 | 1340 | 46.91 | 8.77 | 0.31 | |||
10.4 | 181.3 | 1510 | 51.85 | 8.11 | 0.29 | |||
22.2 | ACP10*3.8 | 1.2 | 26.64 | 380 | 13.40 | 14.26 | 0.50 | 40 |
2.2 | 48.84 | 550 | 19.40 | 11.26 | 0.40 | |||
3.7 | 82.14 | 740 | 26.10 | 9.01 | 0.32 | |||
5.1 | 113.22 | 910 | 31.75 | 7.95 | 0.28 | |||
6.5 | 144.3 | 1070 | 37.04 | 7.28 | 0.26 | |||
ACP11*4.7 | 1.8 | 39.96 | 510 | 17.99 | 12.76 | 0.45 | 48 | |
2.7 | 59.94 | 670 | 23.63 | 11.18 | 0.39 | |||
5.0 | 111 | 970 | 34.22 | 8.74 | 0.31 | |||
7.2 | 153.18 | 1180 | 41.27 | 7.64 | 0.27 | |||
9.4 | 193.14 | 1360 | 47.27 | 6.94 | 0.24 | |||
ACP12*3.8 | 2.1 | 46.62 | 590 | 20.81 | 12.66 | 0.45 | 65 | |
3.5 | 77.7 | 790 | 27.87 | 10.17 | 0.36 | |||
6.0 | 133.2 | 1080 | 38.10 | 8.11 | 0.29 | |||
8.5 | 186.48 | 1140 | 46.91 | 7.13 | 0.25 | |||
11.3 | 241.98 | 1540 | 54.32 | 6.36 | 0.22 | |||
ACP13*4 | 1.5 | 33.3 | 460 | 16.23 | 13.81 | 0.49 | 45 | |
2.4 | 53.28 | 630 | 22.22 | 11.82 | 0.42 | |||
4.1 | 91.02 | 900 | 31.75 | 9.89 | 0.35 | |||
5.7 | 122.1 | 1140 | 39.51 | 9.17 | 0.32 | |||
7.3 | 159.84 | 1340 | 46.21 | 8.2 | 0.29 | |||
DJI15*5 | 2.9 | 64.38 | 780 | 27.51 | 12.12 | 0.43 | 71 | |
4.7 | 104.34 | 1050 | 37.04 | 10.06 | 0.35 | |||
8.3 | 184.26 | 1480 | 52.20 | 8.03 | 0.28 | |||
10.5 | 228.66 | 1670 | 58.20 | 7.22 | 0.25 | |||
13.4 | 284.16 | 1880 | 65.61 | 6.55 | 0.23 |
